K0982 Kipp clamping levers ergonomic, internal thread, steel parts stainless steel
Product Specification Datasheet for K0982 Kipp clamping levers ergonomic, internal thread, steel parts stainless steelView CAD Files

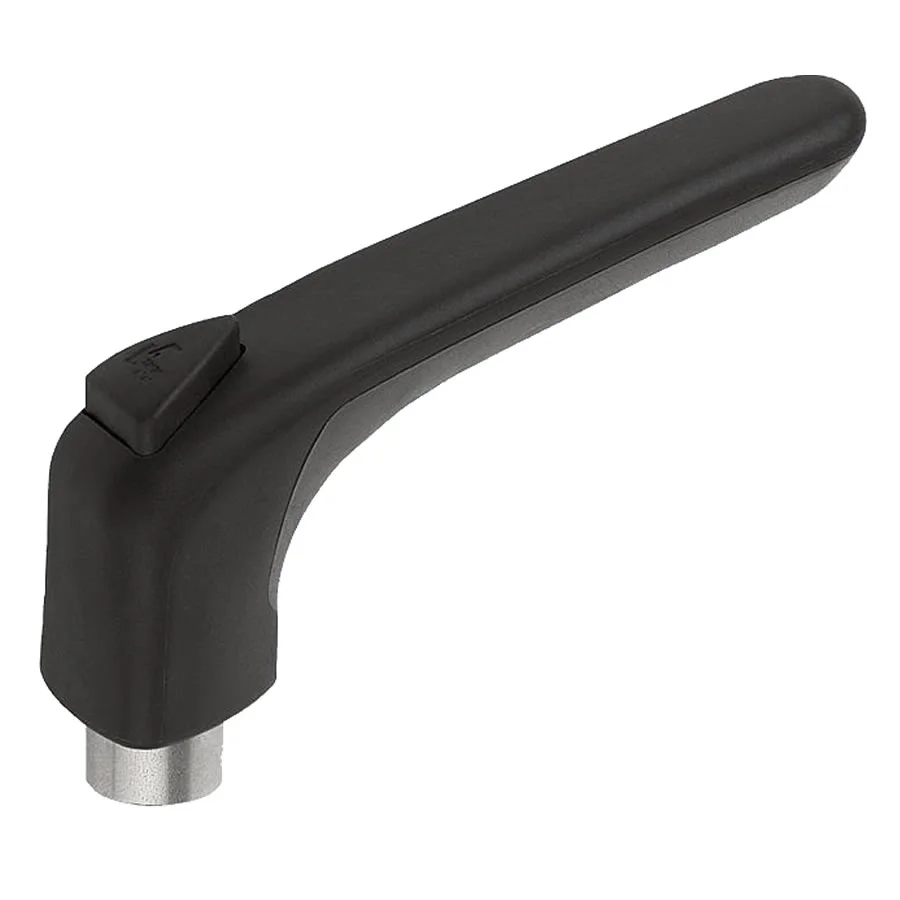

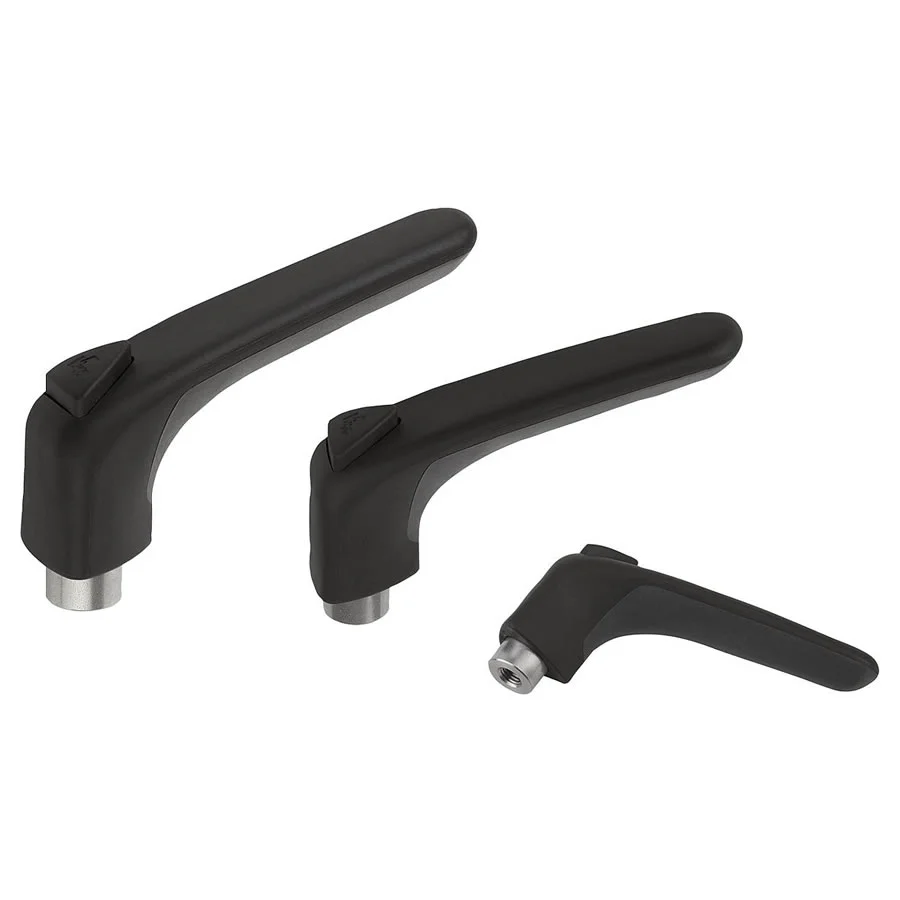

K0982 Kipp ergonomic clamping levers with internal thread, steel parts stainless steel. The colour combinations graphite black RAL 9011 (hard components) and black grey RAL 7021 (soft components) are supplied as standard. The soft components ensure a non-slip grip of the operating part. The closed design offers sufficient protection against dirt. The design was especially developed for ergonomic gripping requirements. The push button improves disengagement and allows the handle to be easily used.
- Material: Handle: Hard components reinforced plastic, toothed ring die-cast zinc. Soft components thermoplastic elastomer. Steel parts: Stainless steel, 1.4305.
- Version: Steel parts bright.
- On request: Other internal threads, colours and special versions. Dimension “H1” available in other lengths at extra charge.
- SYMPAtouch It’s in the name – at least with SYMPAtouch, our product line for maximum ergonomic efficiency. The soft and at the same time antislip material sits perfectly in the hand. This allows a firm grip and protects the hands in frequent use.
Order No:K0982.3081 K0982.3101
