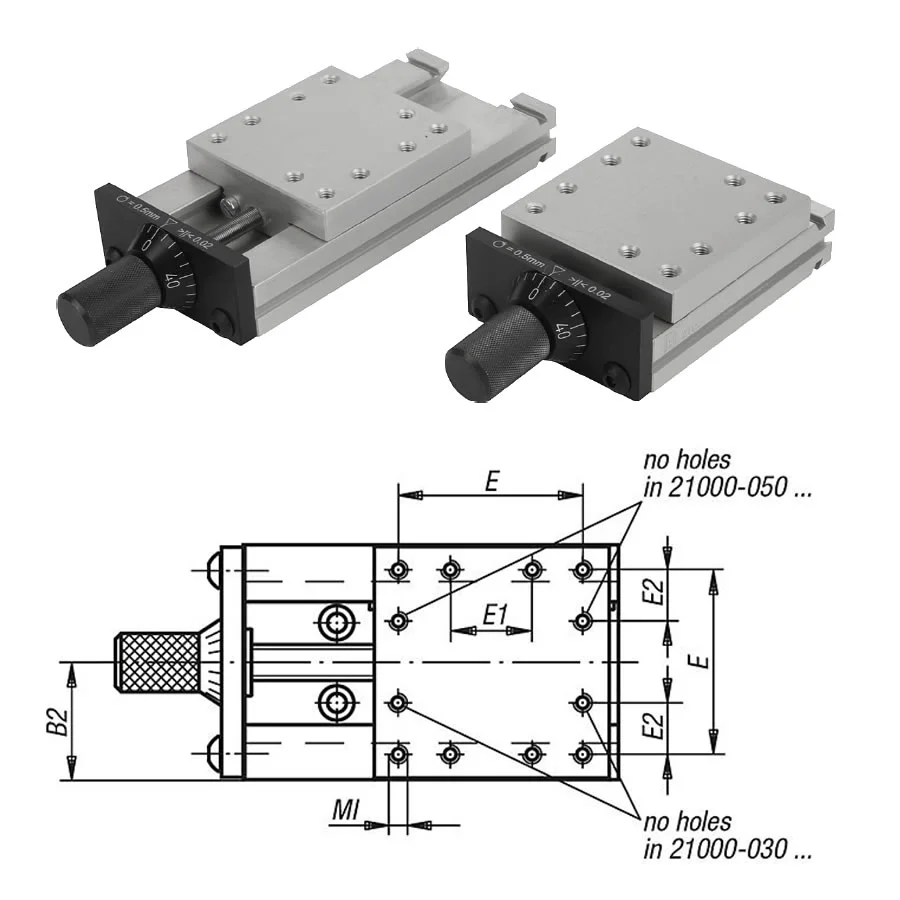

Norelem 21000 Dovetail slides with micrometer spindle
View product information as a PDF datasheet:
Product Specification Datasheet for Norelem 21000 Dovetail slides with micrometer spindleView CAD Files
Product Specification Datasheet for Norelem 21000 Dovetail slides with micrometer spindleView CAD Files
These precision dovetail slides find use in machine and fixture construction, metrology, optical instruments and fine mechanics.
- The stated permissible load rating (F) is for static loads.
- The torque values only apply for centred carriages.
- Material: Aluminium EN AW-6063
- Advantages:
- Innovative and safe clamping system without height or lateral displacement.
- No play in guides.
- Rapid subsequent combination in X, Y and Z axes.
- Applications:
- Adjustment of machining units, metrology cameras, mirrors, microscopes and laser heads (including the machining of surgical needles).
- Fine adjustment of brazing, plasma and welding heads.
- Focussing of flame nozzles.
Order No: 21000-020030 21000-020035 21000-020045 21000-030040 21000-030045 21000-030055 21000-050067 21000-050080 21000-050105 21000-080110 21000-080135 21000-080160 21000-080185 21000-120150 21000-120175 21000-120200 21000-120225
