Norelem 20032 Linear modules pneumatic with rail guide
Product Specification Datasheet for Norelem 20032 Linear modules pneumatic with rail guideView CAD Files
Maintenance-free pneumatic linear modules for small installation spaces with recirculating ball bearing guide and load capacity of max. 12 N. Control by 4/2 or 5/2 directional valve. Pneumatic drive, 4-8 bar, constant, filtered (10 μm), dried, oiled or unoiled. Compressed air connection M3.
Modules of the same size can be combined with one another without adapter plates via the precise centring system by means of centring rings 20240. The position of the stop system is variable.
- For very small installation spaces with recirculating ball guide
- Repeat accuracy ±0.01 mm
- Housing Material: high-strength aluminium, anodised
- Stop system Material: steel, hardened and black oxidised
Order No: 20032-4035 20032-4065
Norelem 21102 Positioning stages, short with position indicator

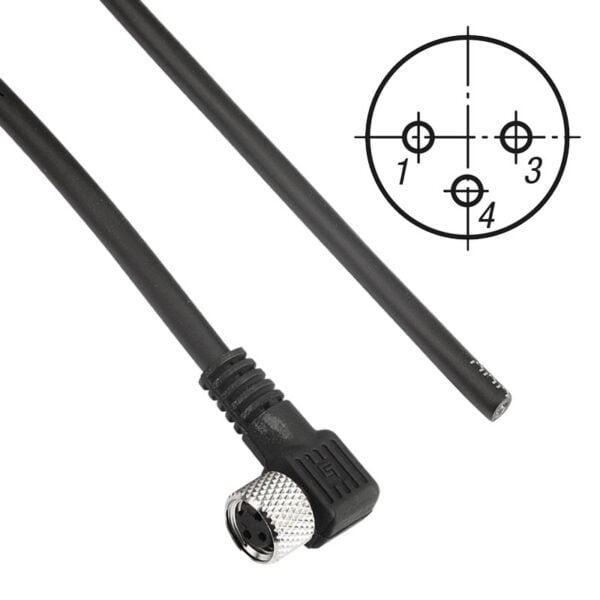

Norelem 80150_B Connectors with screw fitting, Form B
