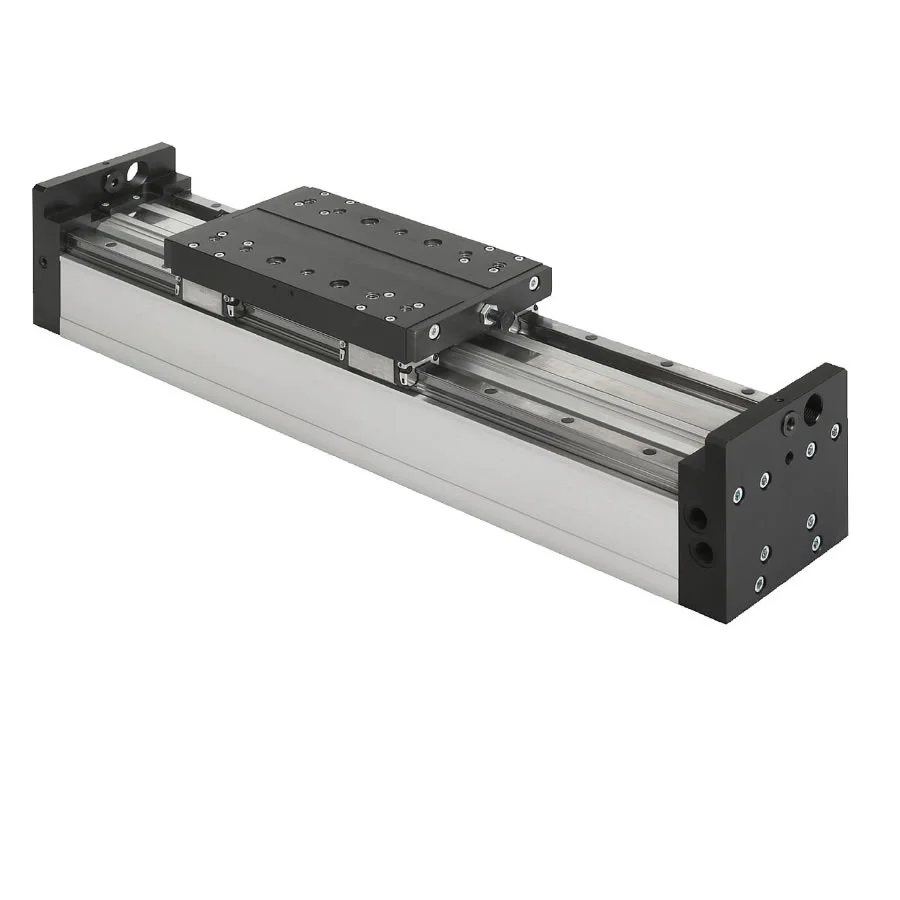

Norelem 20200 Linear gantry module with rail guides
View product information as a PDF datasheet:
Product Specification Datasheet for Norelem 20200 Linear gantry module with rail guidesView CAD Files
Product Specification Datasheet for Norelem 20200 Linear gantry module with rail guidesView CAD Files
Portal modules with ball rail guides. Pneumatic drive through a rodless cylinder. High load rating due to stiffened self-supporting aluminium profiles. The modules can be mounted in any position.
Specified loads apply to dynamic loads.
- With hardened rail guide
- High load capacity through rigid aluminium profile
- Travel max. 5 m
- Piston force max. 640 N
- Repeat accuracy ±0.02 mm
Order No: 20200-1065X0500 20200-1090X0500 20200-1115X0500
