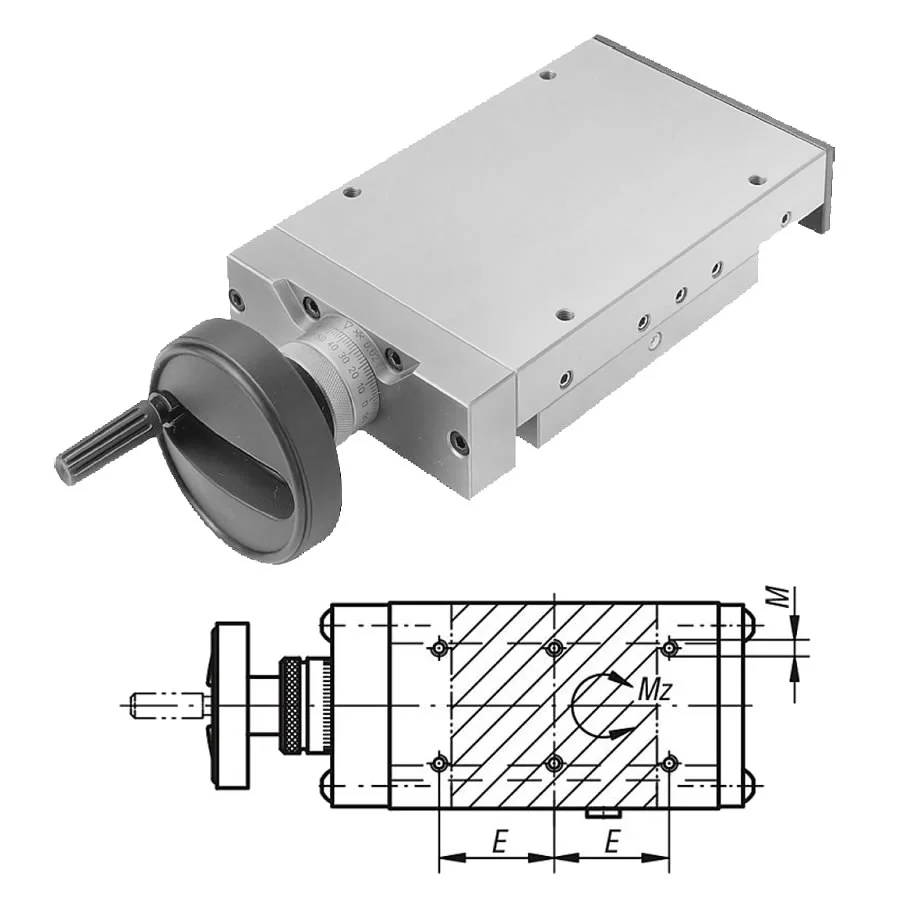

Norelem 21033 Dovetail slides with micrometer spindle and handwheel
Product Specification Datasheet for Norelem 21033 Dovetail slides with micrometer spindle and handwheelView CAD Files
The central set screw “N” can be replaced by a clamping lever 06460. The scale ring is graduated in 0.02 mm increments. Other graduations available on request.
The revolving grip on the handwheel can fold down.
The stated permissible load values (F) are designed for dynamic loads with a lifespan of 1 million travel cycles. For static loads 10 times the value F is permitted. The torque values apply only to centred carriages.
- Material: GJL 250.
- Version: Bright, ground.
Order No: 21033-150210 21033-150310
