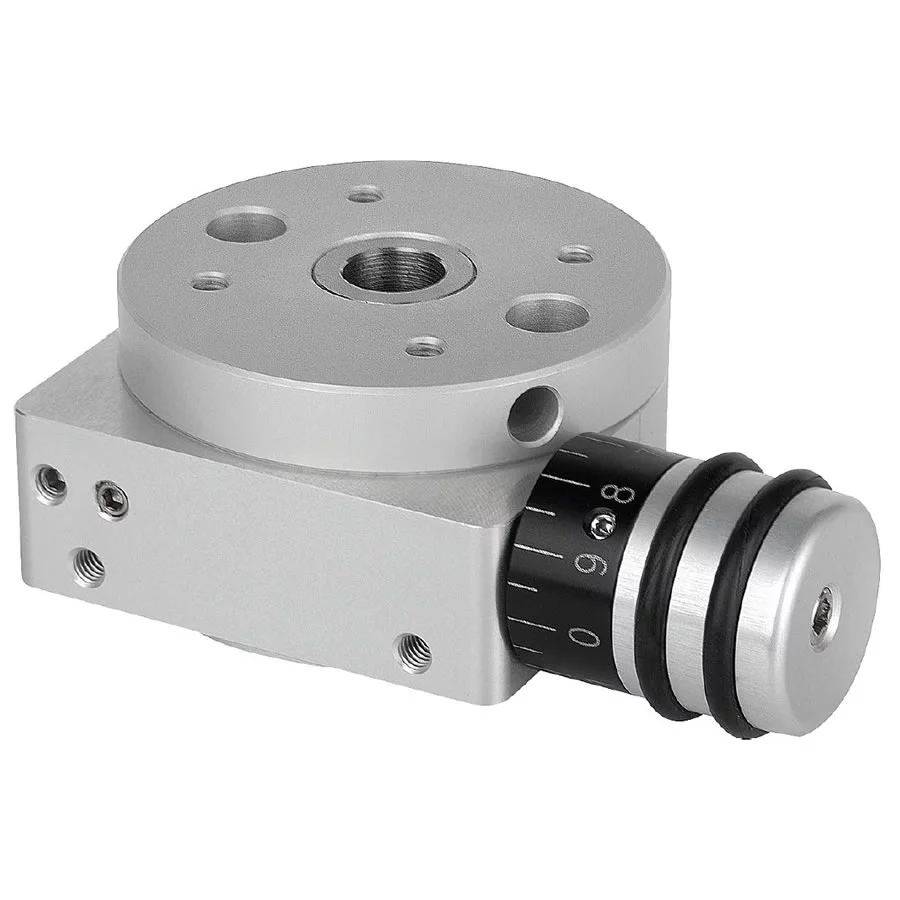

Norelem 21160 Rotary positioning stages

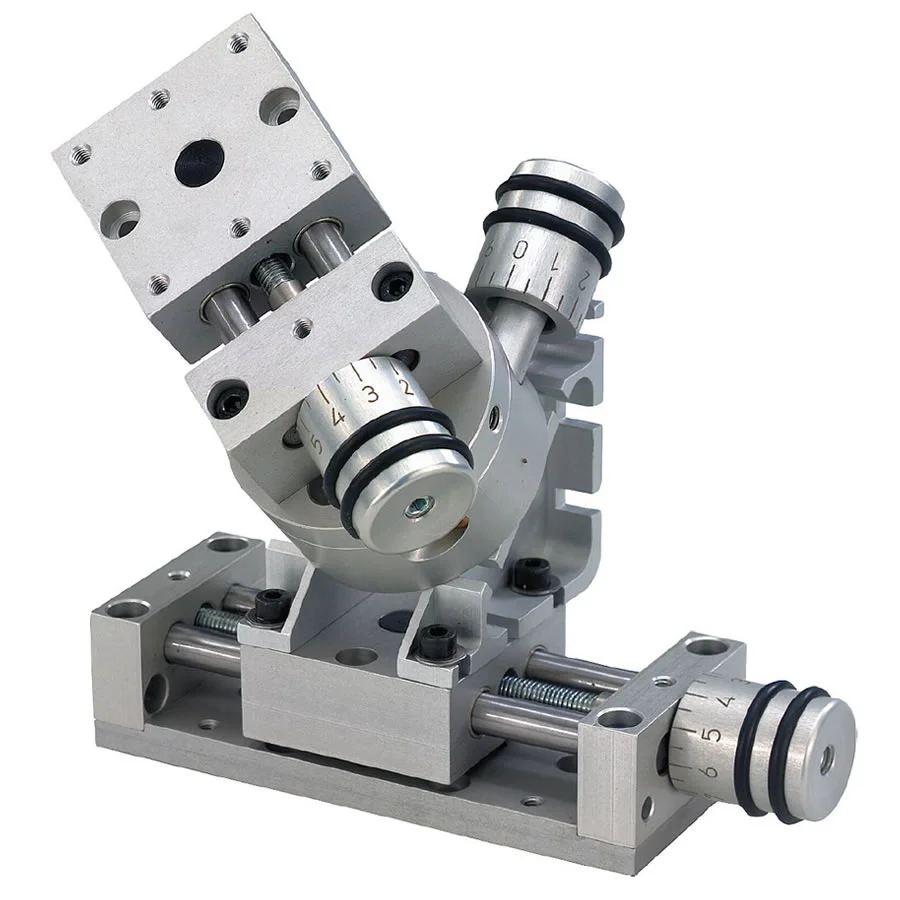

For rotation-positioning of components and assemblies. The rotary stage can be easily combined with other modules of the same size.

360° adjustment, no end stop. Scale graduation is 10 increments. Transmission ratio: 21160-08 = 50:1   21160-12 = 55:1    21160-25 = 50:1

• Material:
  Body and rotary table Al alloy, anodised.
  Spindle steel, case-hardened.
  Spindle bearing maintenance-free.
• Version:
  Radial play of rotation axis < 0.015 mm.
  Axial play of rotation axis < 0.02 mm.
  Repeat accuracy < 0.05°.
  Spindle self-locking.

Order No: 21160-08 21160-12 21160-25
