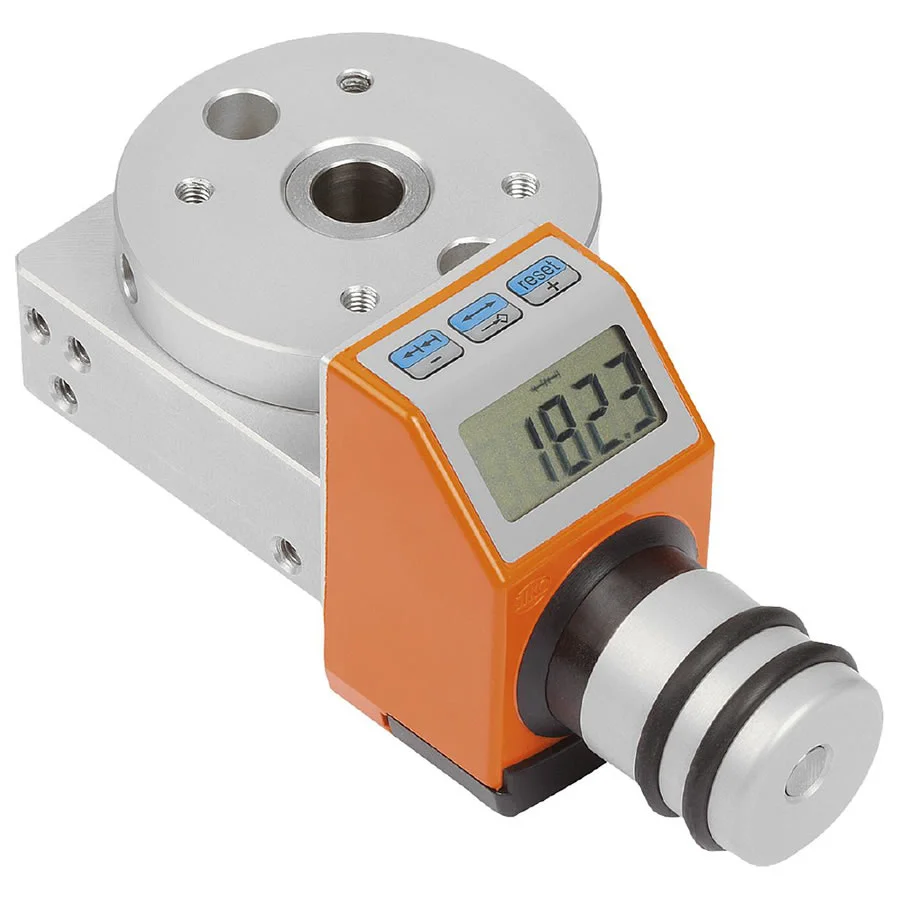

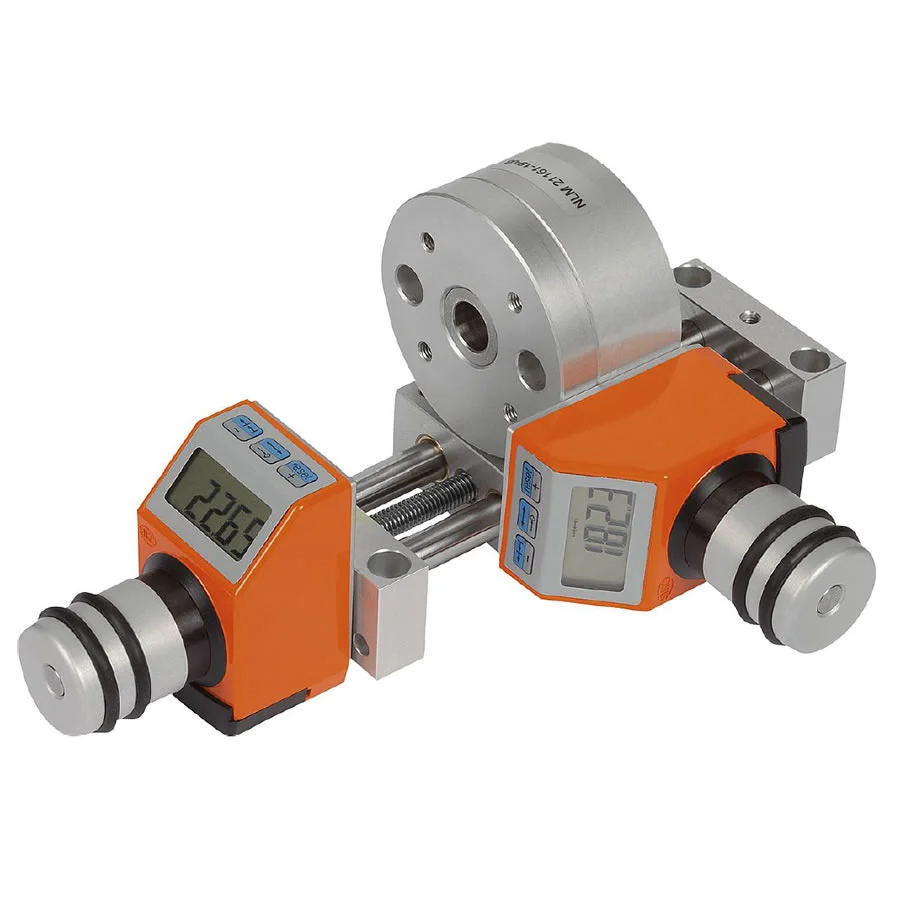

Norelem 21161-10 Rotary stages with electronic position indicator
Product Specification Datasheet for Norelem 21161-10 Rotary stages with electronic position indicatorView CAD Files
For rotation-positioning of components and assemblies. The modular design enables the rotary stage to be easily combined with other items of the same size.
360° adjustment with no end stop. The position indicator displays in 0.1° increments clockwise. The angle of rotation is indicated directly on the large LCD display. The rotary stage rotates anti-clockwise. Reset, chain dimension and offset settings can be made via the keypad.
2 years battery life. The battery is quick and easy to replace. The mounting position of the position indicator is set in 4 positions using one screw.
Transmission ratio: 21161-10-08 = 50:1 21161-10-12 = 55:1 21161-10-25 = 50:1
Body and rotary table Al alloy, anodised.
Spindle steel, case-hardened.
Spindle bearing maintenance-free.
Position indicator plastic.
Radial play of rotation axis < 0.015 mm.
Axial play of rotation axis < 0.02 mm.
Repeat accuracy < 0.05°.
Order No: 21161-10-08 21161-10-12 21161-10-25
Norelem 21160 Rotary positioning stages
Norelem 21134 Cross stages, long

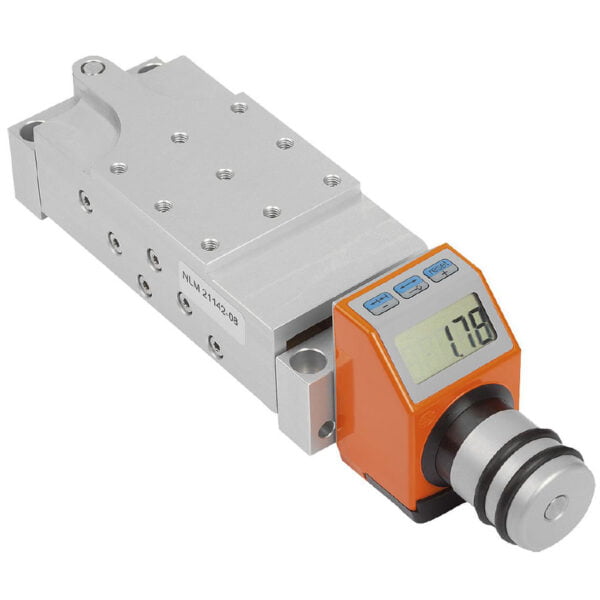

Norelem 21142 Vertical stages with electronic position indicator
