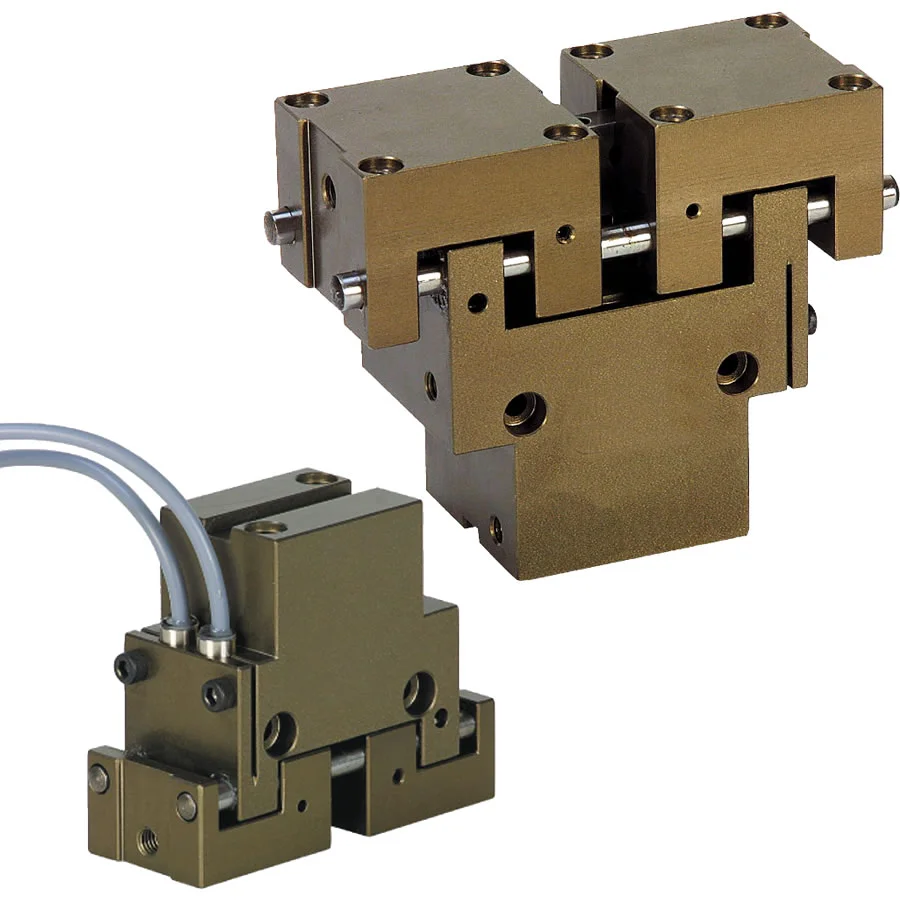

Norelem 20100 Grip module parallel grippers
View product information as a PDF datasheet:
Product Specification Datasheet for Norelem 20100 Grip module parallel grippersView CAD Files
Product Specification Datasheet for Norelem 20100 Grip module parallel grippersView CAD Files
Maintenance-free pneumatic parallel gripper with leverage kinematics. Control by 4/2 or 5/2 directional valve. Pneumatic drive, 4-8 bar, constant, filtered (10 μm), dried, oiled or unoiled.
Grips absolutely centrally. Can grip internally or externally. Proximity switches (accessories) can be integrated for end position feedback.
- Pneumatic actuation
- Workpiece weight 0.12 to 4.74 kg
- High fit precision between the modules via centring system
- Absolute central clamping through guided link kinematics
- Hardened and ground guide shafts
- Repeat accuracy ±0.02 mm.
Order No: 20100-030025 20100-040036 20100-050085 20100-100170 20100-120260 20100-120380 20100-120660 20100-150650 20100-151050
