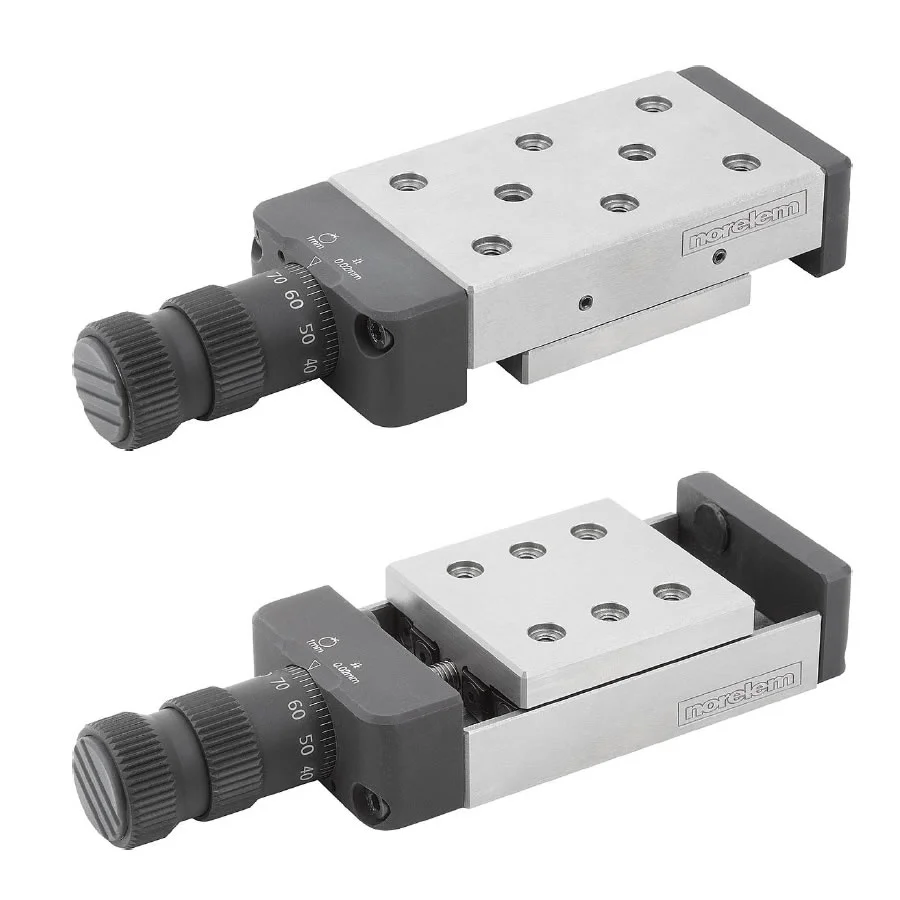

Norelem 21070 Precision slides roller mounted with micrometer spindle and location holes
View product information as a PDF datasheet:
Product Specification Datasheet for Norelem 21070 Precision slides roller mounted with micrometer spindle and location holesView CAD Files
Product Specification Datasheet for Norelem 21070 Precision slides roller mounted with micrometer spindle and location holesView CAD Files
These roller-mounted precision slides are used to build machines and mechanical systems, in metrology devices, optical instruments and precision mechanical engineering. The scale division on the scale ring is 0.02 mm.
- Material: EN-GJL-250
- Version: Bright, ground.
- The stated permissible load values (F) are designed for a service life of 1 million lifting operations.
- The torque values apply only to centered slides.
An additional centering hole is located at holes D2 and D3 on the top of the slide. Other connecting elements can be precisely mounted on the slide in combination with our centering rings 20240.
Order No: 21070-040050 21070-040065 21070-050080 21070-050130 21070-060080 21070-060180 21070-075105 21070-075130 21070-100160 21070-100360
Categories: 21000 Carriage guides, Norelem Machine and Plant Construction Components
Tags: norelem, slides
