Norelem 21090 Mounting plates horizontal
Product Specification Datasheet for Norelem 21090 Mounting plates horizontalView CAD Files

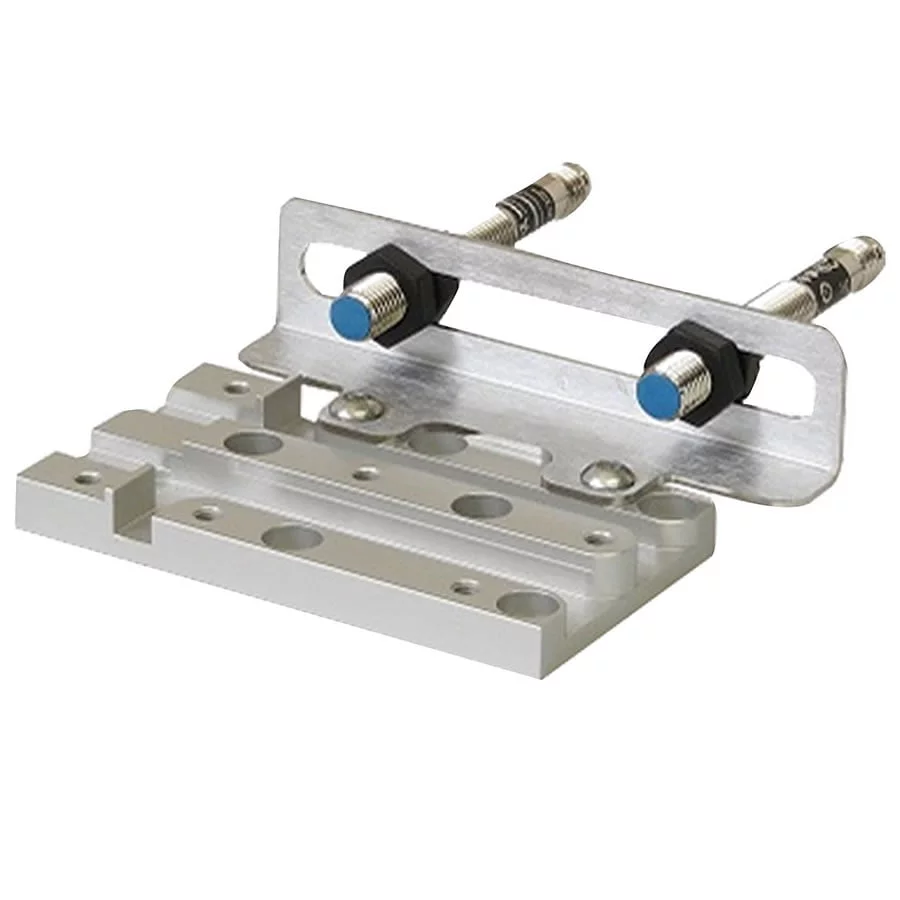

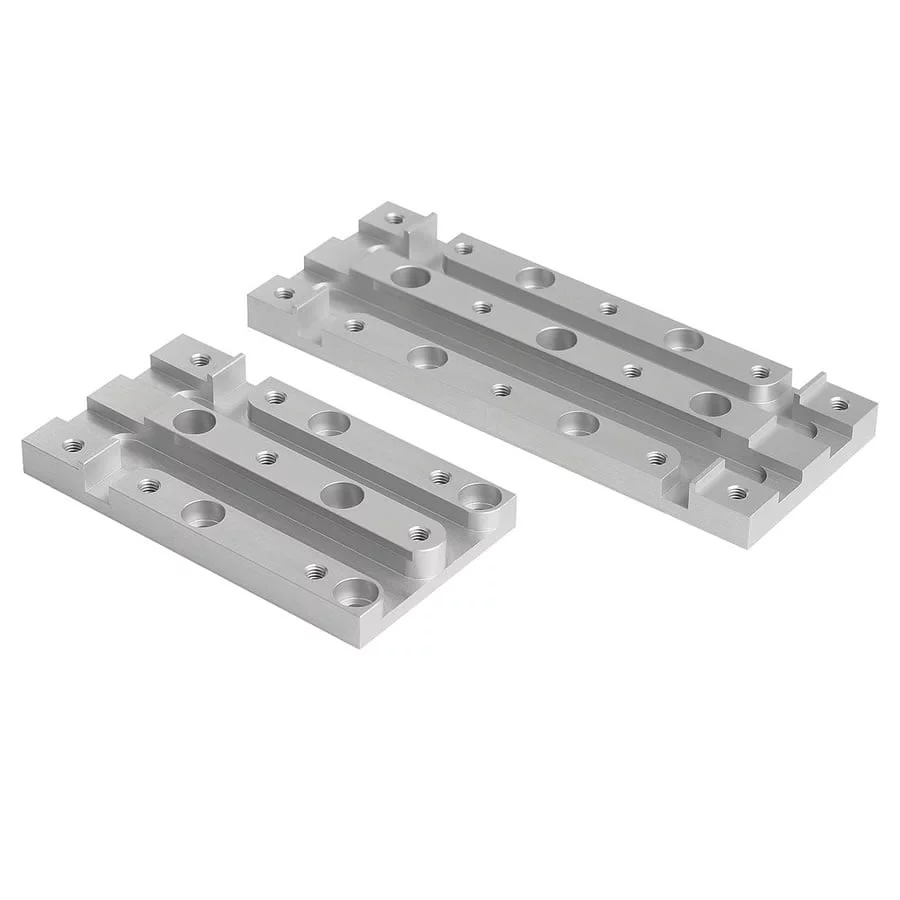

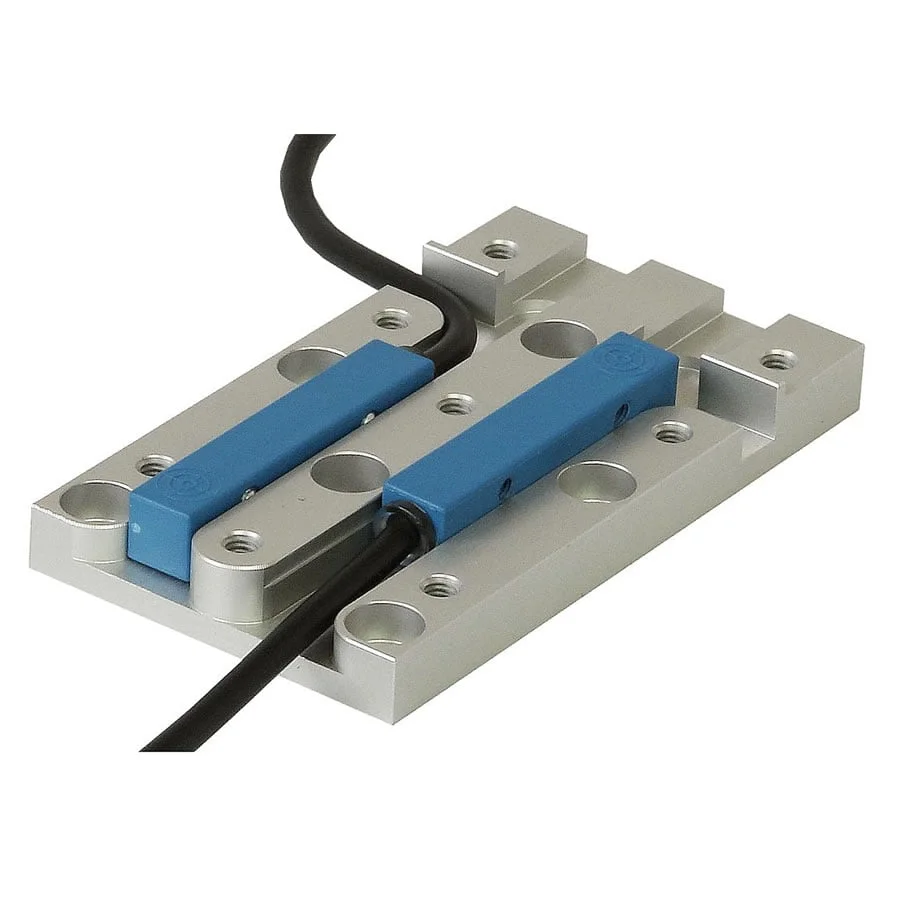

The mounting plate is used for the horizontal mounting of the short or long positioning tables with electric drive. With slots for direct support of inductive proximity switch (20905-005). The proximity switch can be adjusted when the positioning unit is mounted. The threaded holes M4 are used to fasten the sensor holder 21093.
Can be combined with all other parts of the same size.
- Material: Aluminium alloy.
Order No: 21090-081 21090-121 21090-082 21090-122
