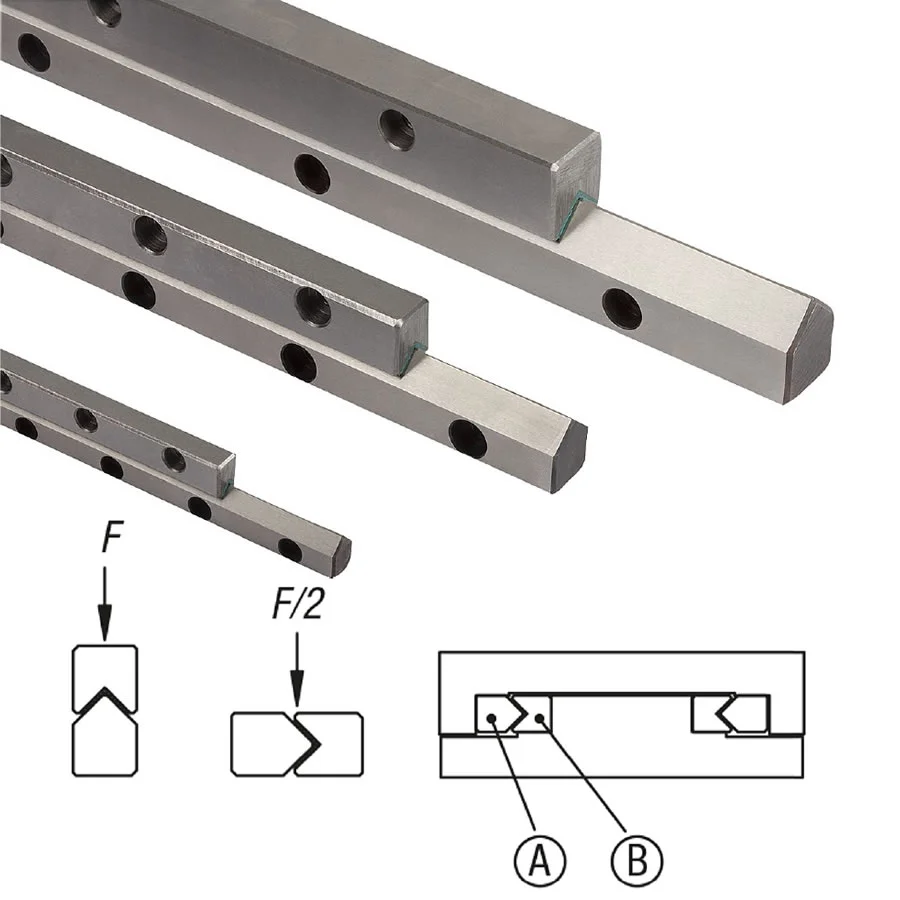

Norelem 21054 Guide rails Teflon-coated
View product information as a PDF datasheet:
Product Specification Datasheet for Norelem 21054 Guide rails Teflon-coatedView CAD Files
Product Specification Datasheet for Norelem 21054 Guide rails Teflon-coatedView CAD Files
The longitudinal guides are used for moving, machining and positioning tasks. When lubricated and under normal conditions, speeds of up to 15 m/min. can be achieved.
- Application: Industry automation, Machine tools, Special machinery, Tool fixtures, Metrology equipment.
- Temperature range: -40 °C to +80 °C.
- Advantages: Stick-slip free movement, very good dry-running properties, highly wear-resistant, very good vibration damping, resistant to dirt, shock and impact.
Order No: 21054-1020030 21054-2020030 21054-1020045 21054-2020045 21054-1020060 21054-2020060 21054-1030050 21054-2030050 21054-1030075 21054-2030075 21054-1030100 21054-2030100 21054-1030125 21054-2030125 21054-1030150 21054-2030150 21054-1060100 21054-2060100 21054-1060150 21054-2060150 21054-1060200 21054-2060200 21054-1060250 21054-2060250 21054-1060300 21054-2060300 21054-1060350 21054-2060350 21054-1060400 21054-2060400 21054-1060500 21054-2060500 21054-1090200 21054-2090200 21054-1090300 21054-2090300 21054-1090400 21054-2090400 21054-1090500 21054-2090500
Categories: 21000 Carriage guides, Norelem Machine and Plant Construction Components
Tags: norelem, slides
