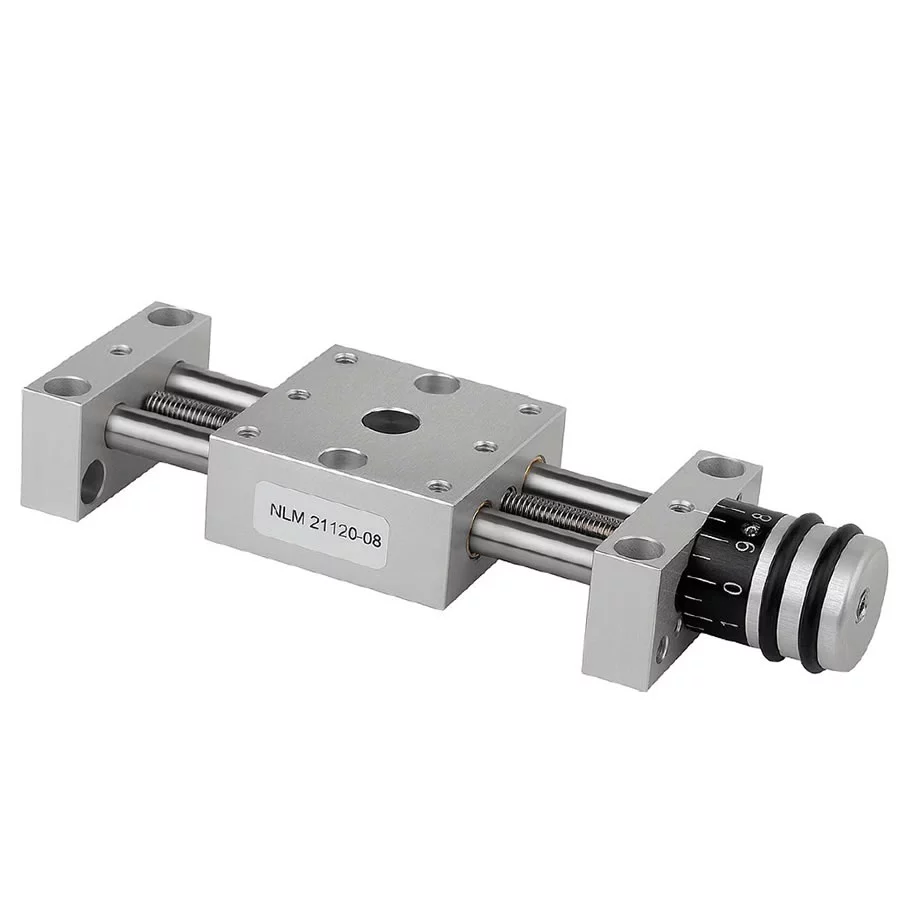

Norelem 21120 Positioning stages, long

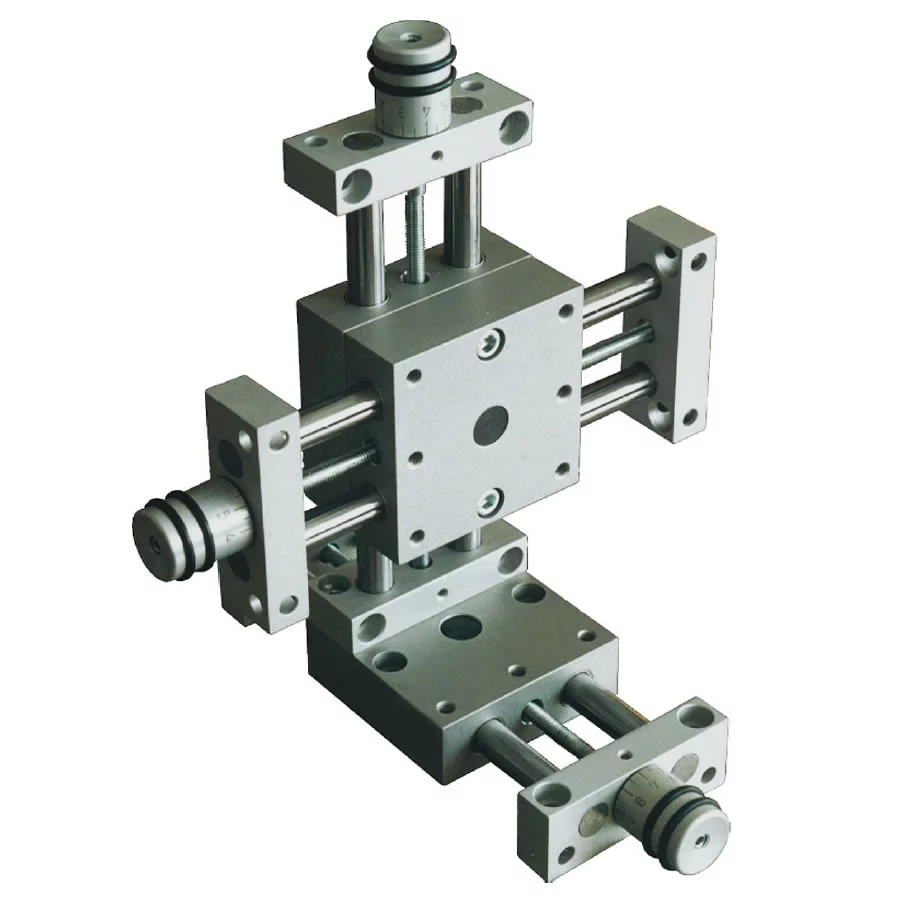

Modular positioning system, can be easily combined using the modular principle within the respective sizes. Due to the practically play-free guides and absolutely play-free spindle, loosening or clamping of the spindle is not required during adjustments.

Scale graduation is 5 or 10 increments, 1 increment is equal to 0.1 mm travel.

  • Radial play on guide < 0.02 mm.
  • No axial backlash.
  • Spindle self-locking, with additional lock.
  • Material: Bearing block and carriage aluminium alloy, anodised. Guide columns stainless steel, ground. Spindle stainless steel, rolled thread. Guide bearing maintenance-free.

Order No: 21120-04 21120-08 21120-12 21120-25
