Norelem 21140 Vertical stages
View product information as a PDF datasheet:
Product Specification Datasheet for Norelem 21140 Vertical stagesView CAD Files
Product Specification Datasheet for Norelem 21140 Vertical stagesView CAD Files

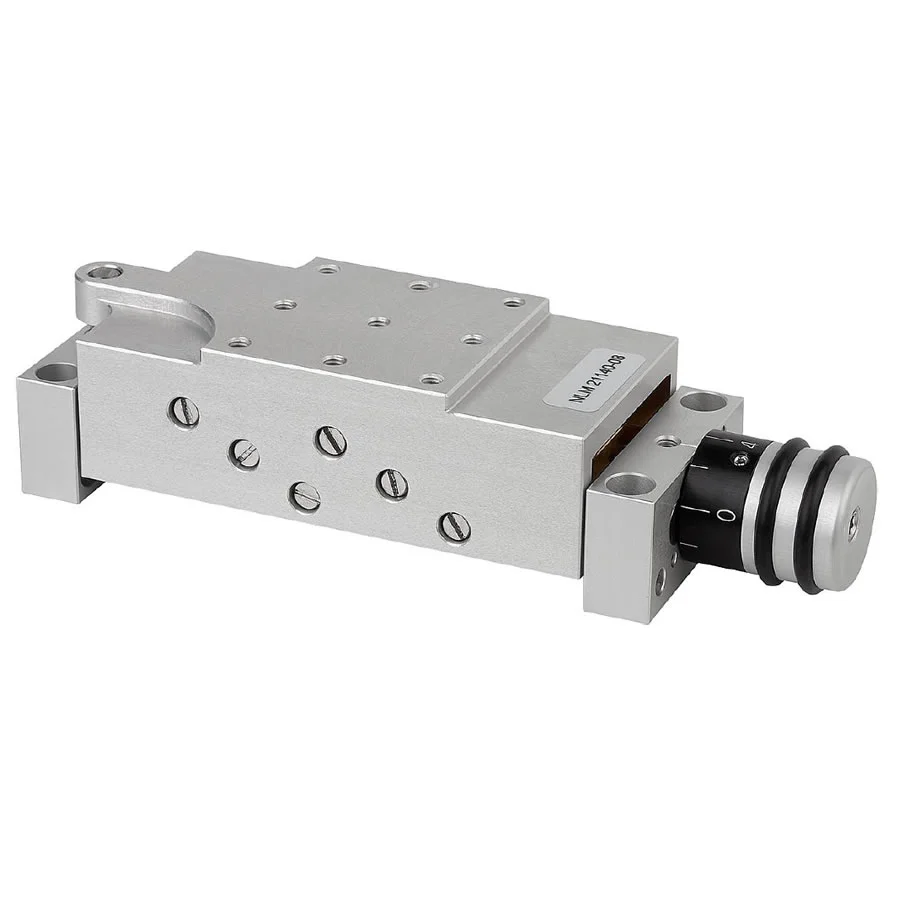

For positioning the height of all types of components and assemblies e.g. stops, sensors, limit switches, tables, cameras, entire assemblies etc. The height of the stage is adjusted manually by turning the scale knob. 1 increment of the scale equals 0.1 mm travel.

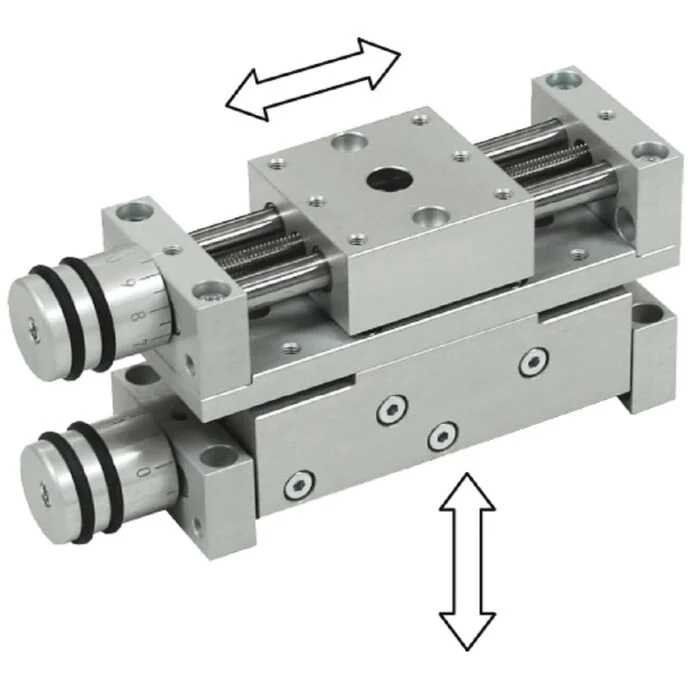

Within the respective sizes, the vertical stages can be easily combined using the modular principle.
- Material:
Vertical stage, bearing blocks and scale knob Al alloy, anodised.
Guiding columns stainless steel, ground.
Spindle stainless steel, rolled thread.
Guide bearing, maintenance-free - Version:
Guide backlash < 0.05 mm.
Spindle self-locking, with additional lock.
Order No: 21140-04 21140-08 21140-12 21140-25
