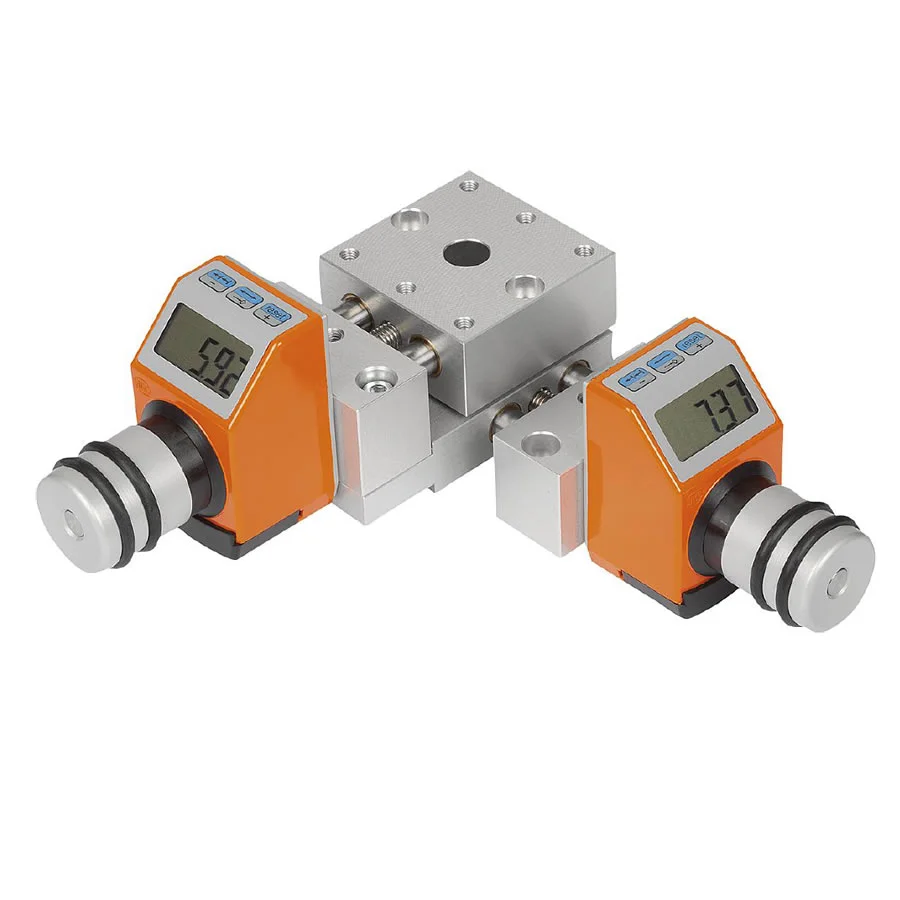

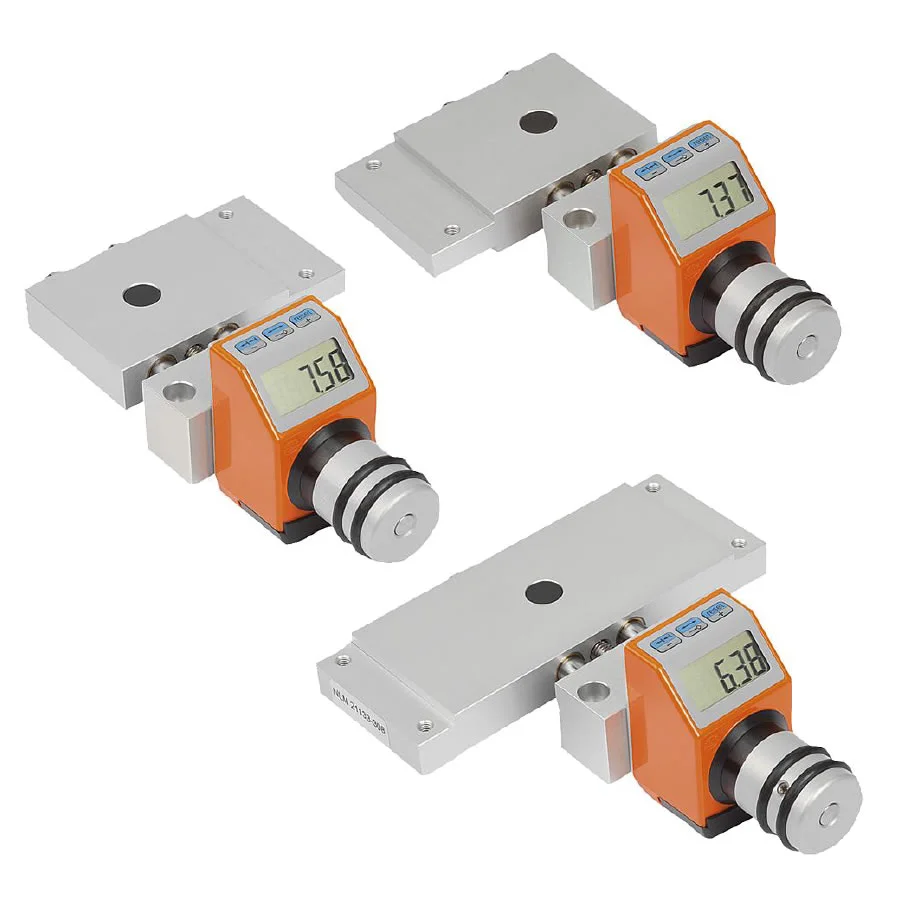

Norelem 21133 Cross slides, short with electronic position indicator
Product Specification Datasheet for Norelem 21133 Cross slides, short with electronic position indicatorView CAD Files
Short cross slides with electronic position indicators. Electronic position indicator with 0.01 mm display accuracy and large LCD display.
Reset, chain dimension and offset settings can be made via the keypad. 2 years battery life. The battery is quick and easy to replace. The mounting position of the position indicator is set in 4 positions using one screw.
The almost play-free guides and absolutely play-free spindle enables adjustment
without the need to loosen or clamp the spindle.
The modular design enables the cross slide to be easily combined with positioning stages, vertical stages and other accessories of the same size.
Bearing block and carriage aluminium alloy, anodised.
Guide columns stainless steel, ground.
Spindle stainless steel, rolled thread.
Guide bearing maintenance-free.
Position indicator plastic.
Radial play on guide < 0.02 mm.
No axial backlash.
Spindle self-locking, with additional lock.
Order No: 21133-108 21133-112 21133-208 21133-212 21133-308 21133-312
