Norelem 21132 Cross stages, short with position indicators
Product Specification Datasheet for Norelem 21132 Cross stages, short with position indicatorsView CAD Files

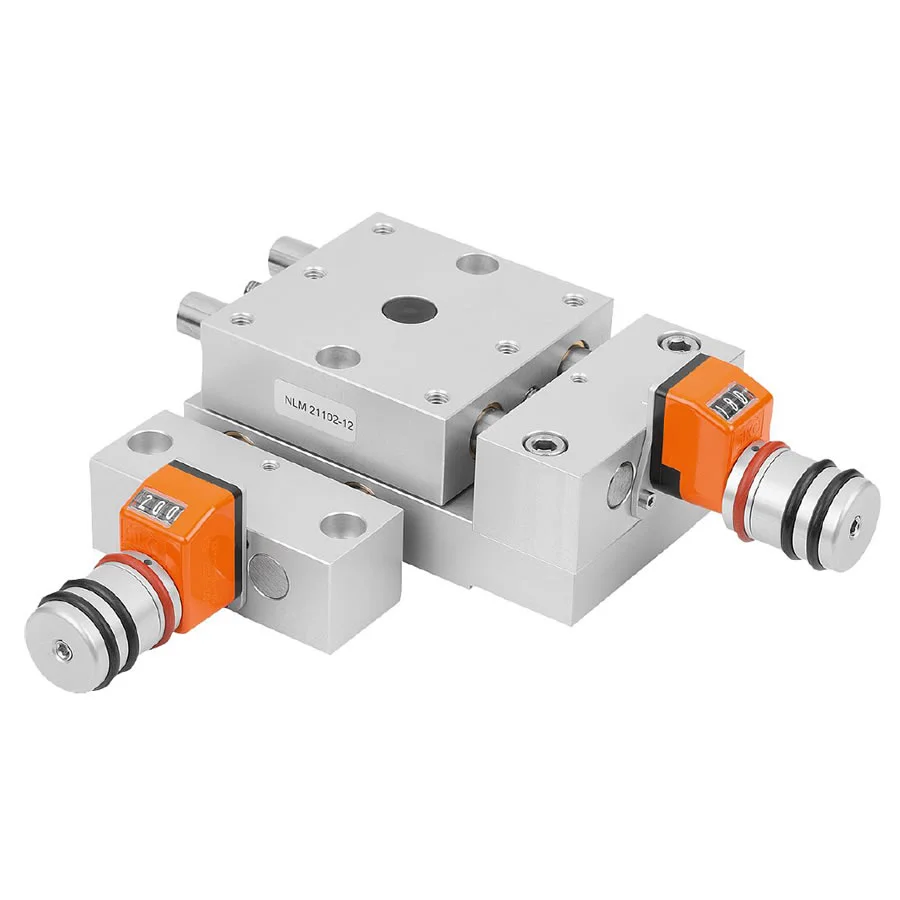

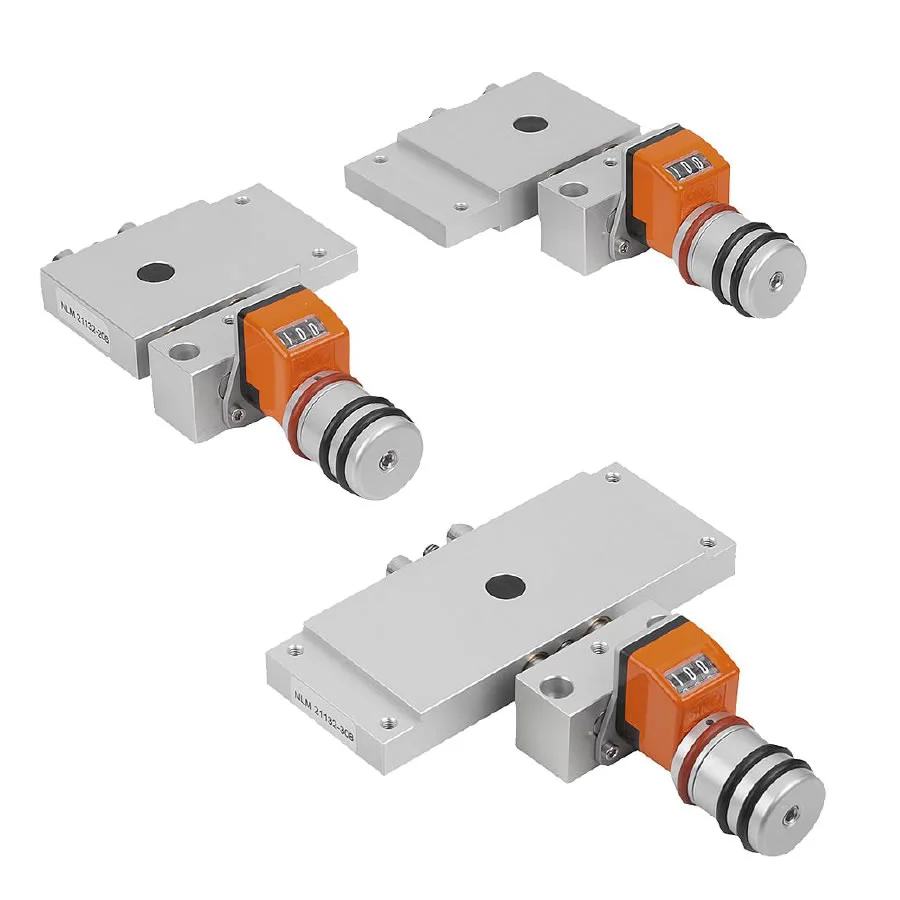

Short cross stages with digital position indicators. The cross stage can be easily combined with positioning stages, vertical stages and other accessories of respective size by the modular principle.
Digital position indicator with 0.1 mm indicator accuracy, digits increase by clockwise rotation. The display value is set by turning the outer ring. The indicator can be mounted in 4 positions using a screw.
The almost play-free guides and absolutely play-free spindle allow for adjustment without the need to loosen or clamp the spindle.
Bearing block and carriage aluminium alloy, anodised.
Guide columns stainless steel, ground.
Spindle stainless steel, rolled thread.
Guide bearing maintenance-free.
Position indicator plastic.
Radial play on guide < 0.02 mm.
No axial backlash.
Spindle self-locking, with additional lock.
Order No: 21132-108 21132-112 21132-208 21132-212 21132-308 21132-312
