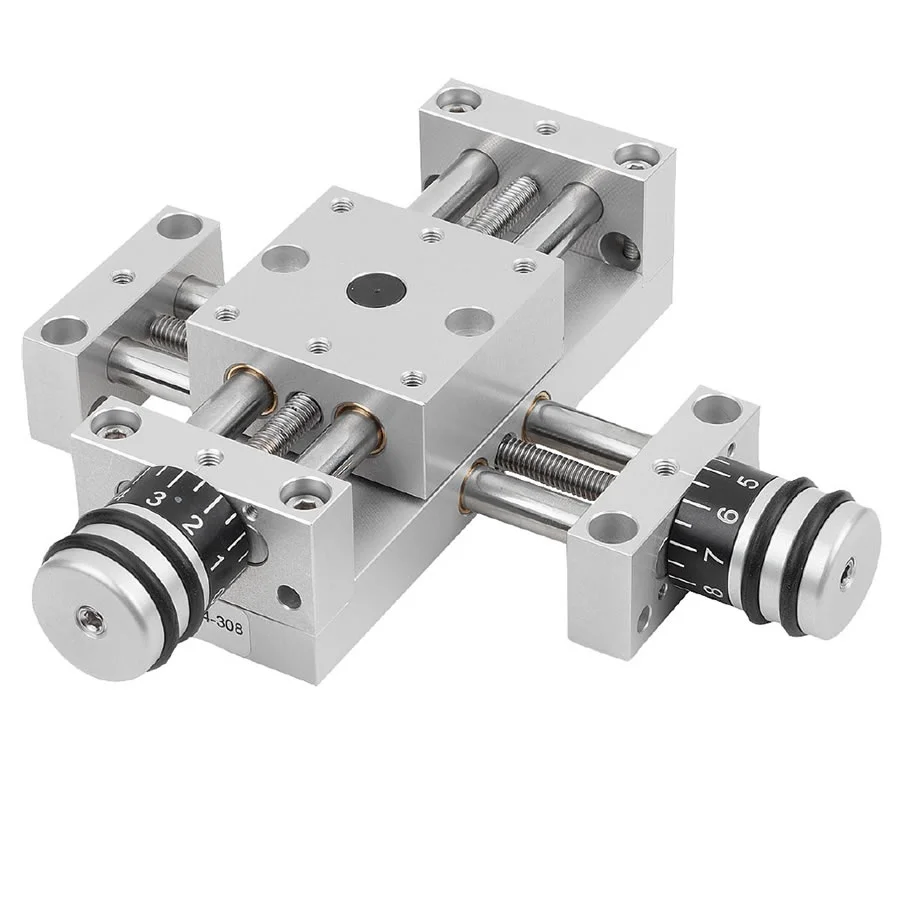

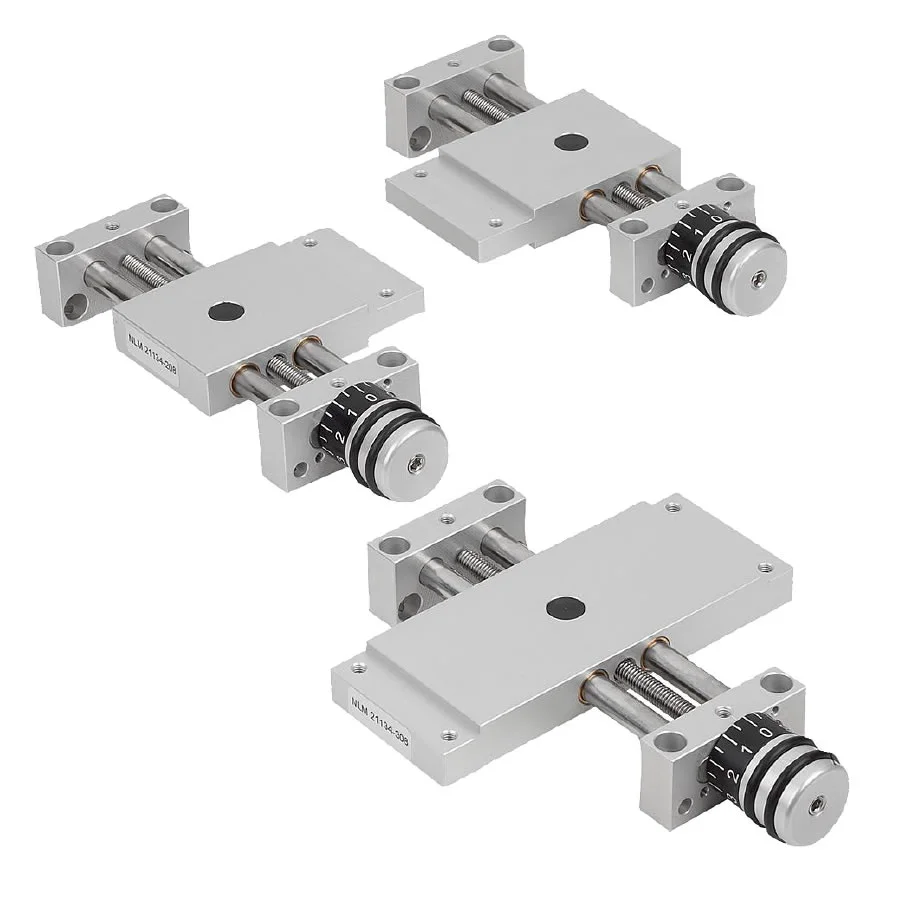

Norelem 21134 Cross stages, long
Product Specification Datasheet for Norelem 21134 Cross stages, longView CAD Files
Long cross stages with self-locking spindle. The almost play-free guides and absolutely play-free spindle allow for adjustment without the need to loosen or clamp the spindle. The scale graduation is in 5 or 10 increments; 1 increment corresponds to 0.1 mm of travel.

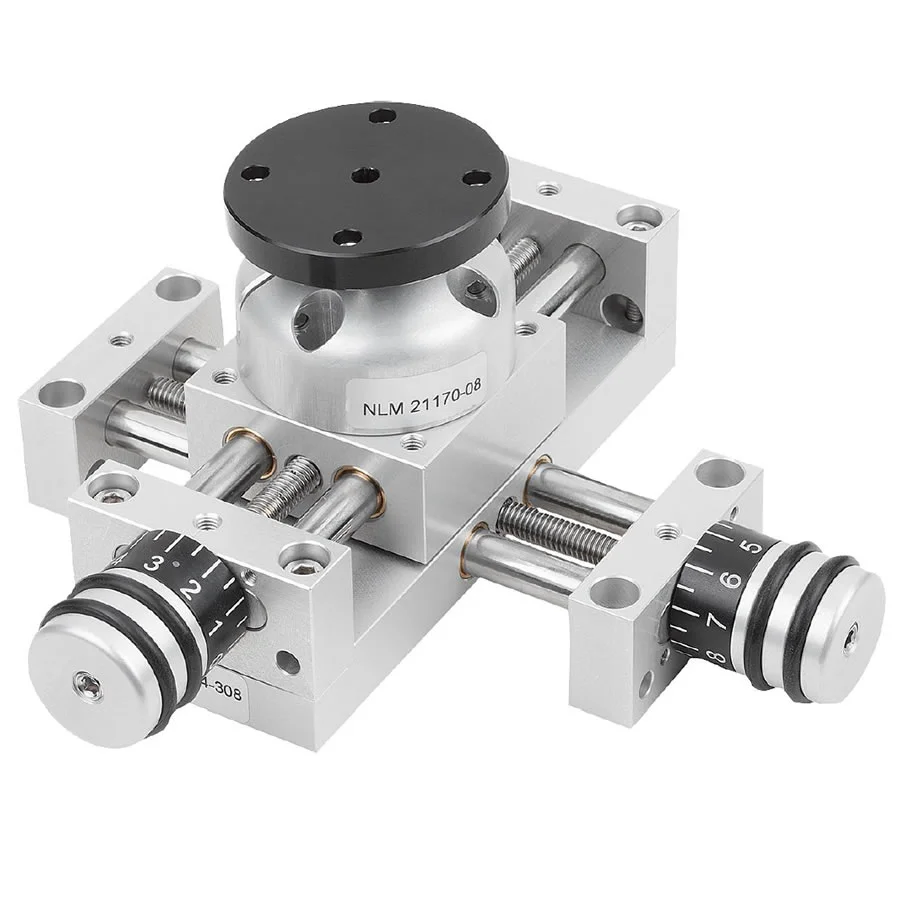

The cross stage can be easily combined with positioning stages, vertical stages and other accessories of respective size by the modular principle.
Bearing block and carriage aluminium alloy, anodised.
Guide columns stainless steel, ground.
Spindle stainless steel, rolled thread.
Guide bearing maintenance-free.
Radial play on guide < 0.02 mm.
No axial backlash.
Spindle self-locking, with additional lock.
Order No: 21134-104 21134-108 21134-112 21134-204 21134-208 21134-212 21134-304 21134-308 21134-312
